PT-36

Name: PT-36
Brand: Thermacut

ESAB/L-TEC PT-36 torcu için uyumlu Thermacut parçaları: kalkan, tutucu başlık, meme, girdap halkası, elektrot, torç gövdesi, komple torç ve kablo paketi.

WhatsApp'tan teklif isteyin 0212 706 72 70

Parçalar

Parçalarda ara

73 parça

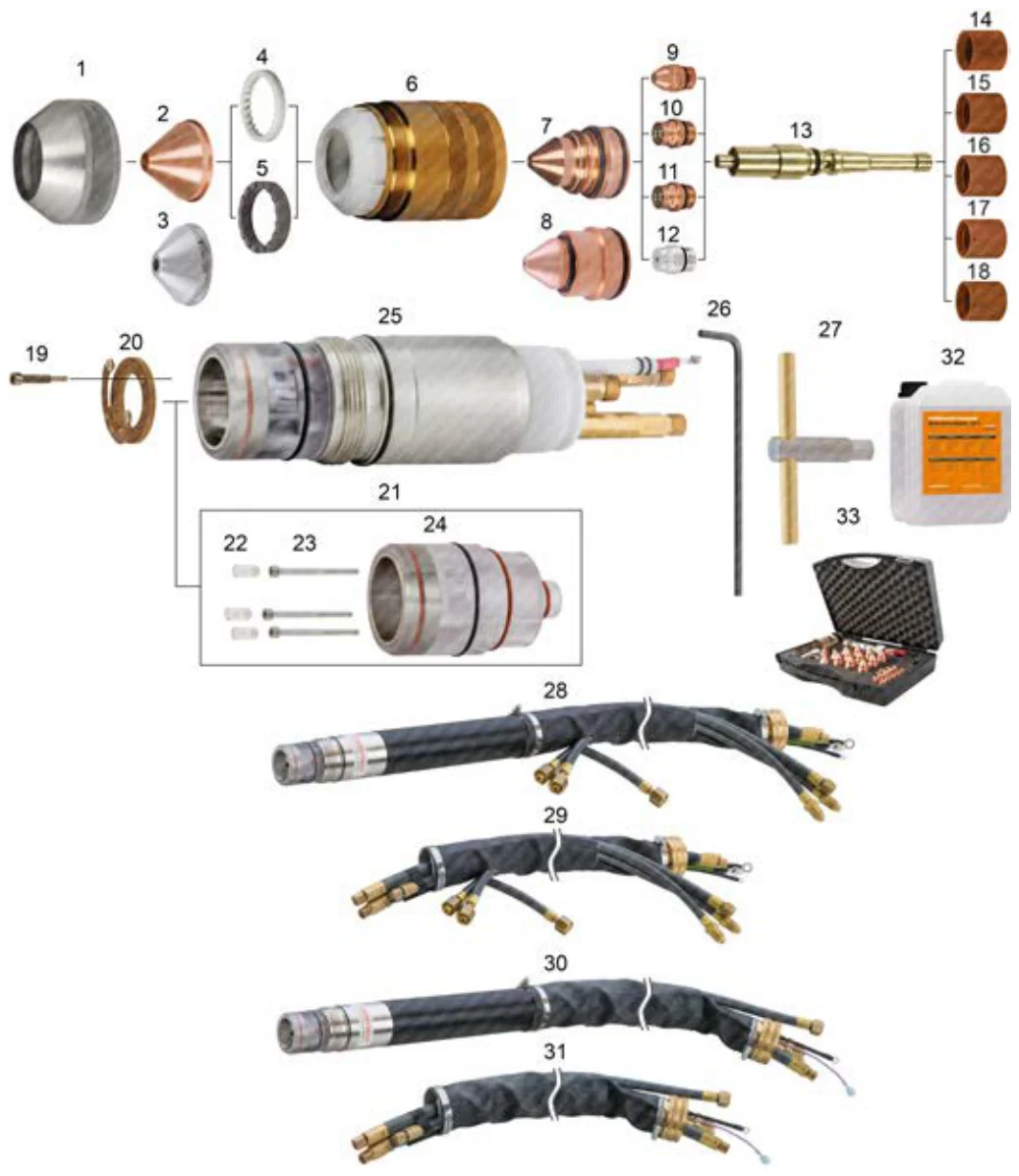

Poz.	Parça no	Orijinal no	Tanım	Paket	Teklif
1	T-10128	37081	Shield Retainer	1	Teklif isteyin
2	T-12231	0558009425	Micro Shield 2.5mm 30–60A MS	1	Teklif isteyin
	T-10463	0558007624	Shield Cup 2.4mm 45–55A	1	Teklif isteyin
	T-10333	0558006130	Shield Cup 3.0mm 35–50A	1	Teklif isteyin
	T-10332	0558006141	Shield Cup 4.1mm 70–280A	1	Teklif isteyin
	T-10334	0558006166	Shield Cup 6.6mm 290–450A	1	Teklif isteyin
	T-10335	0558006199	Shield Cup 9.9mm 300–600A	1	Teklif isteyin
3	T-13363	0558009551	Shield Cup 5.1mm XC	1	Teklif isteyin
	T-13365	0558010766	Shield Cup 6.6mm XC	1	Teklif isteyin
4	T-2269	21944	Diffuser 100–600A	1	Teklif isteyin
	T-10331	22496	Diffuser 100–600A, CCW	1	Teklif isteyin
5	T-2268	21796	Gas Diffuser 50A	1	Teklif isteyin
6	T-10129	37082	Nozzle Retaining Cap, Standard	1	Teklif isteyin
7	T-12229	0558009406	Micro Nozzle 0.6mm 30A MS/SS/AL	1	Teklif isteyin
	T-12230	0558009410	Micro Nozzle 1.0mm 60A MS/SS/AL	1	Teklif isteyin
	T-10875	0558008010	Nozzle 1.0mm	1	Teklif isteyin
	T-10336	0558006010	Nozzle 1.0mm 45/50A MS/SS/AL	1	Teklif isteyin
	T-10337	0558006014	Nozzle 1.4mm 100A MS/AL (70/130A SS)	1	Teklif isteyin
	T-10970	0558006018	Nozzle 1.8mm 100/130A MS (100A SS/AL)	1	Teklif isteyin
	T-10338	0558006020	Nozzle 2.0mm 150/200A MS/AL (130/150A SS)	1	Teklif isteyin
	T-10339	0558006023	Nozzle 2.3mm 200/280A MS (200A SS), (200/260A AL)	1	Teklif isteyin
	T-10340	0558006025	Nozzle 2.5mm 280/290A MS (260A SS)	1	Teklif isteyin
	T-10443	0558006030	Nozzle 3.0mm 325/360A MS (360A SS/AL)	1	Teklif isteyin
	T-10341	0558006036	Nozzle 3.6mm 400A MS (450A SS)	1	Teklif isteyin
(OD)	T-10292	0558006041	Nozzle 4.1mm 600A SS/AL	1	Teklif isteyin
8	T-13366	0558011619	Nozzle CF 1.9mm 200A XR	1	Teklif isteyin
	T-13364	0558010722	Nozzle CF 2.2mm 260A XR	1	Teklif isteyin
	T-13367	0558011625	Nozzle CF 2.5mm 360A XR	1	Teklif isteyin
	T-13362	0558006028	Nozzle CF 2.8mm 450A XR	1	Teklif isteyin
9	T-12228	0558009400-PRO	Micro Electrode 30–60A MS/SS/AL	5	Teklif isteyin
	T-11910	0558003928-UR	Electrode, N2/H35	5	Teklif isteyin
10	T-11290*	0558003914-PRO	Electrode 100–450A, O2, Silver PRO	5	Teklif isteyin
11	T-11994	0558012000-PRO	Electrode 100–450A, O2, Silver PRO	5	Teklif isteyin
12	T-11209**	0558003914-AG	Electrode, Standard, O2	5	Teklif isteyin
13	T-11319	0558003924-UR	Electrode Holder	1	Teklif isteyin
14	T-10693	0558005457 OEM	Gas Swirl Baffle, 4 × 0.022, 35–70A	5	Teklif isteyin
15	T-4607	0558002534	Gas Swirl Baffle, 4 × 0.032, 100–280A, CCW	1	Teklif isteyin
16	T-4606	0558002533	Gas Swirl Baffle, 4 × 0.032, 100–280A	1	Teklif isteyin
17	T-4636	0558001625	Gas Swirl Baffle, 8 × 0.047, 300–600A	1	Teklif isteyin
18	T-11119	0558002530	Gas Swirl Baffle, 8 × 0.047, 360–450A, CCW	1	Teklif isteyin
19	T-11942	37073	Screw, Contact Ring	1	Teklif isteyin
20	T-11863	0558003858	Cont. Ring with 2pcs. Screws 37073 (=37071)	1	Teklif isteyin
21	T-12040	T-12040	Exchangeable Insulator Kit	1	Teklif isteyin
22	PT-13160	0558001825-11	Plastic Screw	1	Teklif isteyin
23	PT-13159	0558001825-10	Screw	1	Teklif isteyin
24	PT-12123	0558001825-8	Insulator Body	1	Teklif isteyin
25	T-11208	0558003804	Torch Body PT-36™	1	Teklif isteyin
26	N-20426	93750010	Hex Key Wrench for Contact Ring	1	Teklif isteyin
(OD)27	T-11665	0558003918 OEM	Electrode Holder Wrench	1	Teklif isteyin
28	KT-1452	0558006745	PT-36™ Mach. Torch with Leads 1.3m	1	Teklif isteyin
	KT-1453	0558006746	PT-36™ Mach.Ttorch with Leads 1.8m	1	Teklif isteyin
	KT-1454	0558006747	PT-36™ Mach.Ttorch with Leads 3.7m	1	Teklif isteyin
	KT-1455	0558006749	PT-36™ Mach. Torch with Leads 4.6m	1	Teklif isteyin
	KT-1456	0558006750	PT-36™ Mach. Torch with Leads 5.2m	1	Teklif isteyin
	KT-1457	0558006779	PT-36™ Mach. Torch with Leads 6.1m	1	Teklif isteyin
	KT-1458	0558006751	PT-36™ Mach. Torch with Leads 7.6m	1	Teklif isteyin
29	KT-1460	0558007031	PT-36™ Cable Leads 1.3m	1	Teklif isteyin
	KT-1461	0558007032	PT-36™ Cable Leads 1.8m	1	Teklif isteyin
	KT-1462	0558007034	PT-36™ Cable Leads 3.7m	1	Teklif isteyin
	KT-1463	0558007036	PT-36™ Cable Leads 4.6m	1	Teklif isteyin
	KT-1464	0558007037	PT-36™ Cable Leads 5.2m	1	Teklif isteyin
	KT-1465	0558007038	PT-36™ Cable Leads 6.1m	1	Teklif isteyin
	KT-1466	0558007039	PT-36™ Cable Leads 7.6m	1	Teklif isteyin
	KT-1522	0558007035	PT-36™ Cable Leads 4.3m, Bevel	1	Teklif isteyin
30	KT-1478	0558003849	PT-36™ Mach. Torch with Leads 1.4m	1	Teklif isteyin
	KT-1479	0558003850	PT-36™ Mach. Torch with Leads 1.8m	1	Teklif isteyin
	KT-1480	0558003852	PT-36™ Mach. Torch with Leads 3.7m	1	Teklif isteyin
	KT-1481	0558003853	PT-36™ Mach. Torch with Leads 4.6m	1	Teklif isteyin
	KT-1482	0558003854	PT-36™ Mach. Torch with Leads 5.2m	1	Teklif isteyin
	KT-1483	0558003856	PT-36™ Mach. Torch with Leads 7.6m	1	Teklif isteyin
31			Cable Leads are available on request, because of more possible types of fittings.		Teklif isteyin
32			Coolant Liquid. Details on the page 130, section Accessories.		Teklif isteyin
33			Consumable Case. Details on the page 135, section Accessories.		Teklif isteyin

Marka adları ve orijinal parça numaraları yalnızca uyumluluğu göstermek için kullanılmıştır, hakları sahiplerine aittir.
